Agilent E5071c RF

$3,500

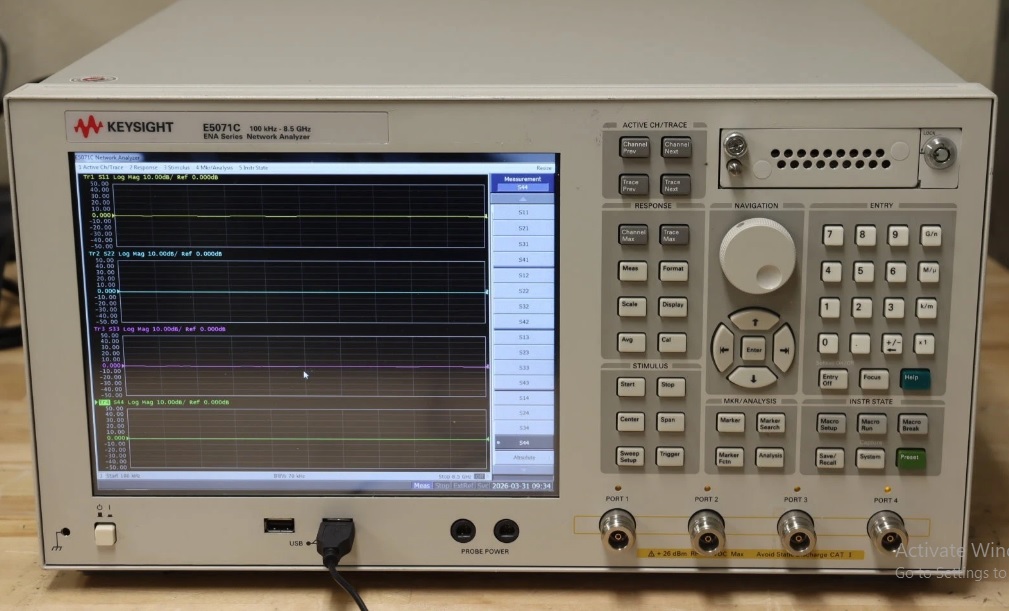

Agilent E5071c RF Network Analyzer 4 Port Test Set 100khz-8.5ghz This is a Agilent E5071c ENA Network Analyzer. This unit is in GREAT condition, and guaranteed fully operational.  The options below are all installed:

Description

This is a Agilent E5071C ENA Network Analyzer. This unit is in GREAT condition, and guaranteed fully operational.  The options below are all installed:
485–4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
1E5–Timebase
Windows 7 OS

The E5071C network analyzer offers the highest RF performance and fastest speed in its class, with a wide frequency range and versatile functions. The E5071C is the ideal solution for manufacturing and R&D engineers evaluating RF components and circuits for frequency range up to 20 GHz.

Features:

  • Wide dynamic range: > 123 dB dynamic range at test port (typical)
  • Fast measurement speed: 41 ms @ full 2-port cal, 1601 points
  • Low trace noise: 0.004 dB rms @ 70 kHz IFBW
  • Integrated S-parameter test set
  • Port options: 2-port and 4-port
  • Balanced measurements (4-port option)
  • Frequency options: From 9 kHz – 4.5 GHz/6.5 GHz/8.5 GHz, 100 kHz – 4.5 GHz/6.5 GHz/8.5 GHz (with bias tees), 300 kHz – 14 GHz/20 GHz (with bias tees)
  • Built-in Visual Basic for Applications (VBA)
