Description

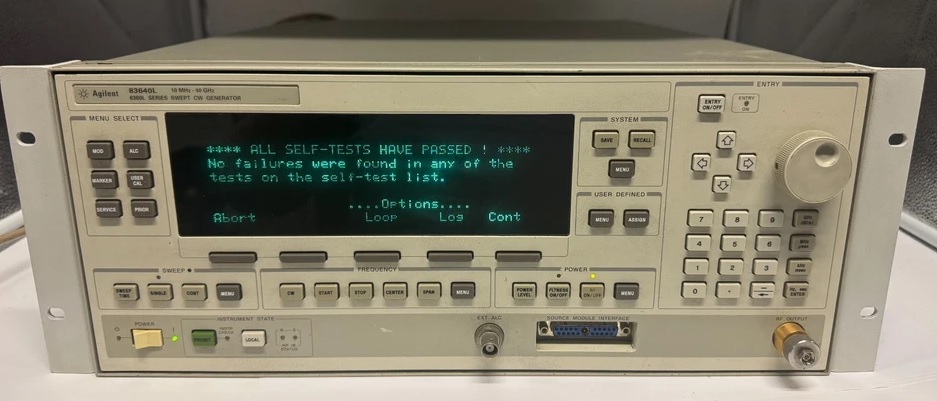

Agilent / HP 83640L swept CW generator.

The Agilent / HP 83640L is a high-performance synthesized swept CW (Continuous Wave) generator operating over a frequency range of 10 MHz to 40 GHz. It serves as a specialized industry standard, combining the strict frequency precision of a synthesized RF source with the speed and flexibility of an analog sweep oscillator.

• Frequency Range: 10 MHz to 40 GHz.
• Standard Frequency Resolution: 1 kHz (can be upgraded to 1 Hz with Option 008).
• Calibrated Output Power: +10 dBm standard (leveled down to -20 dBm).
• Phase Noise: Less than -80 dBc at a 10 GHz carrier with a 10 kHz offset.
• Harmonics: <-50 dBc below 26.5 GHz (typical).
• Sweep Modes: Supports Ramp (analog), Step, and List sweep modes for flexible automated testing.

The device covers the frequency range from 10 MHz to 40 GHz. The device Agilent / HP 83640L is used, tested, and in working order.
