Description

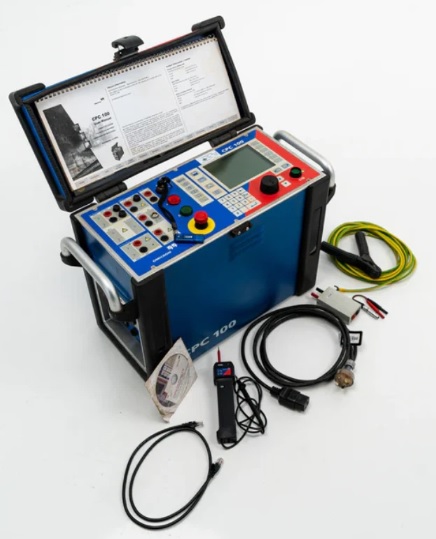

Omicron CPC 100
A compact and multifunctional primary injection test system, replacing multiple individual devices for streamlined substation testing and diagnostics.
Included Equipment:
CPC 100 test unit (29 kg)
Optional boosters (current or voltage)
Software: Primary Test Manager (PTM), mobile companion (PTMate)
Technical Specifications:
Output: Up to 800 A or 2 kV (extendable to 2 kA or 12–15 kV with boosters)
Power: Up to 5 kVA
Frequency: 15 Hz–400 Hz (AC), up to 400 A DC
Features: Compact design, high noise suppression, templates & auto-reporting, safety-rated (IEEE/IEC)
Applications
Testing of CTs, VTs, transformers, lines, grounding, rotating machines, and circuit breakers
Substation commissioning and maintenance diagnostics
Key Technical Specifications OMICRON CPC 100
- Current Output: Generates up to 800 A AC (extendable to 2,000 A with booster accessories) and 400 A DC.
- Voltage Output: Delivers up to 2,000 V AC (extendable to 12 kV using a high-voltage booster).
- Power Capability: Provides up to 5 kVA of apparent power.
- Frequency Range: Operates across a variable 15 Hz to 400 Hz spectrum. This variable frequency allows it to filter out mains-frequency noise and interference for precise on-site testing
