Description

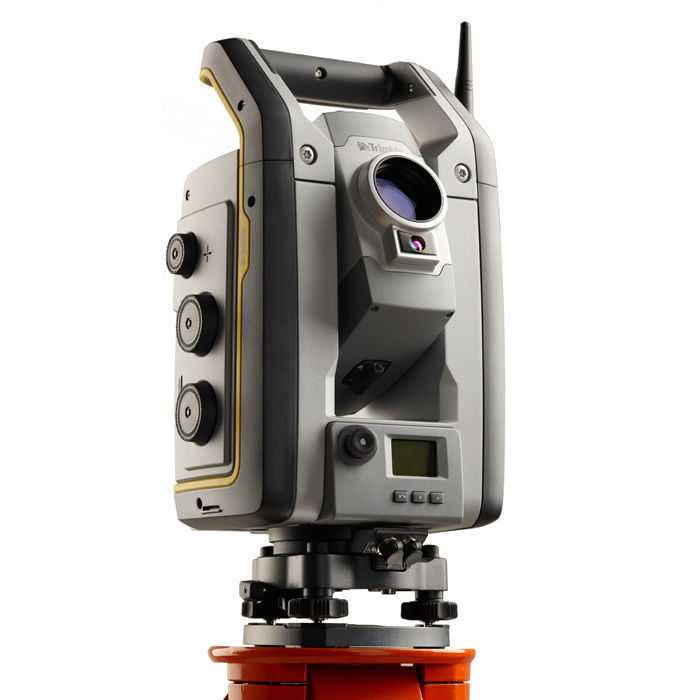

The Trimble S7 1″ DR Plus Robotic Total Station is a high-precision surveying instrument designed for demanding engineering, construction, and geospatial applications. Featuring 1-arc-second angular accuracy, this robotic total station delivers exceptional measurement precision for control surveys, site layout, and detailed topographic mapping.

Equipped with DR Plus EDM technology, the instrument can measure long distances with or without a prism, enabling efficient fieldwork even when reflective targets are not available. The system supports prism measurements up to 2,500 m and up to 5,500 m in long-range mode, while reflectorless measurements can reach approximately 1,300 m, depending on surface conditions.

The Trimble S7 1″ DR Plus Robotic Total Station integrates advanced robotic technologies such as MagDrive servo motors, which provide fast, silent rotation while minimizing mechanical wear. Its Autolock and Active Tracking capabilities automatically locate and follow a prism target, enabling single-operator surveying workflows that significantly increase field productivity.

Additional intelligent systems include SurePoint technology, which maintains accurate pointing and measurement even in windy or vibrating conditions, and Trimble VISION imaging technology, allowing users to remotely control the instrument, capture site images, and visually document survey data.

Designed for rugged field environments, the instrument features IP65 protection against dust and water and operates reliably in temperatures from −20°C to +50°C. It also integrates seamlessly with Trimble Access field software and Trimble Business Center, ensuring efficient data collection, processing, and workflow from the field to the office.
